A Rwandan client needed to purchase several axial flow pumps, so we took them to visit our axial flow pump factory. They were very excited to see such large pumps.Initially, they were concerned about quality, but after visiting the factory, they found the pumps had excellent quality control and a proven track record. They quickly made their purchase decision.
purchased product model:350ZQB-70 ,Q:1580m³/h H:6m 40KW
Technical parameters of ZQB series submersible axial flow pump
Products overview
ZQB submersible axial flow pump and HQB submersible mixed flow pump are updated products of traditional water pump electric motor unit. The integrated machine pump can operate in water for a long time and has a series of outstanding advantages.
1. Due to the submersible operation of the pump, adults have simplified the geotechnical and building structure engineering of the pump station, reduced the installation area, and saved 30–40% of the total project price.
2. Due to the integration of the water pump and motor, there is no need to perform shaft to center assembly on site, making installation convenient and fast.
3. Low noise, no high temperature inside the pump station, improve working conditions, and can also build a fully underground pump station as required to maintain the environmental appearance of the ground.
4. Easy to operate, no need to lubricate the rubber bearings of the water pump before starting up, and remote and automatic control can be achieved.
5. It can solve the problem of motor flood control for building pump stations in areas with large water level fluctuations along the river and lakes.
Application scope of products
ZQB · HQB submersible electric pump, suitable for agricultural irrigation, industrial and mining docks, urban construction, and power station water supply and drainage. The ZQB submersible axial flow pump is suitable for low head and high flow situations. The HQB submersible mixed flow pump has high efficiency and good cavitation performance, and is suitable for situations with large water level changes and high head requirements.
Operating conditions
The conveying medium is water or other liquids with physical and chemical properties similar to water, and the maximum temperature of the conveyed liquid is 40 ℃.

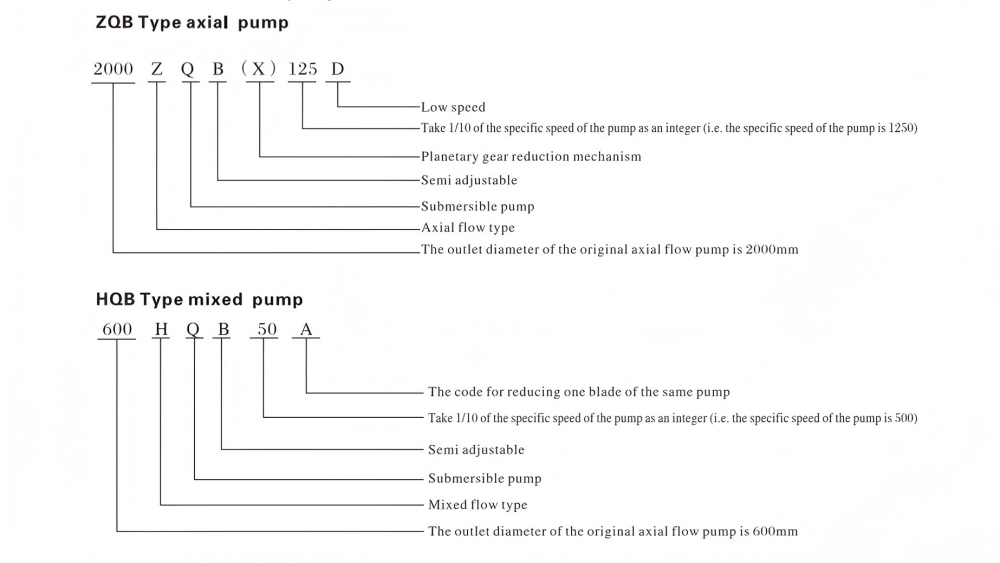

Identification code of pump model

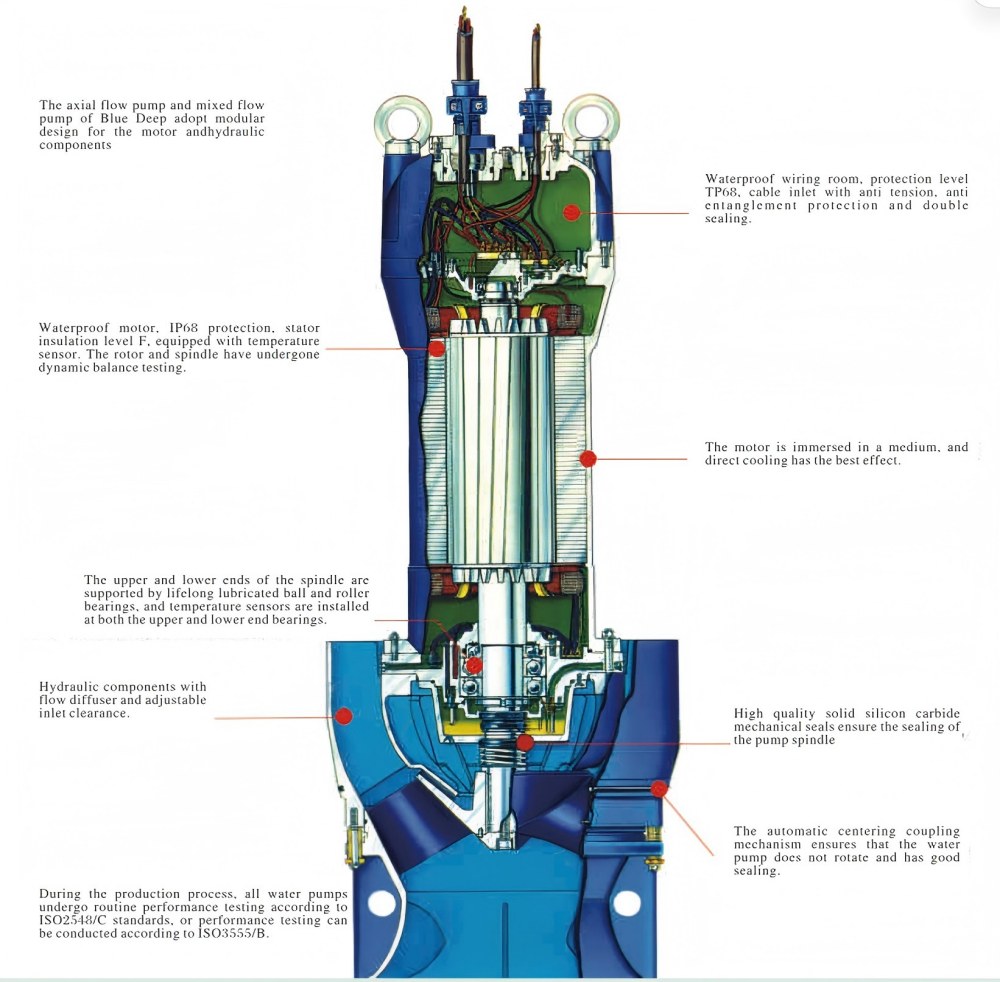

Features of pump design
